1.5mm 3 Core SY Control Flexible Cable

Estimated delivery on this item from: £3.96

Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.

Additional Information:

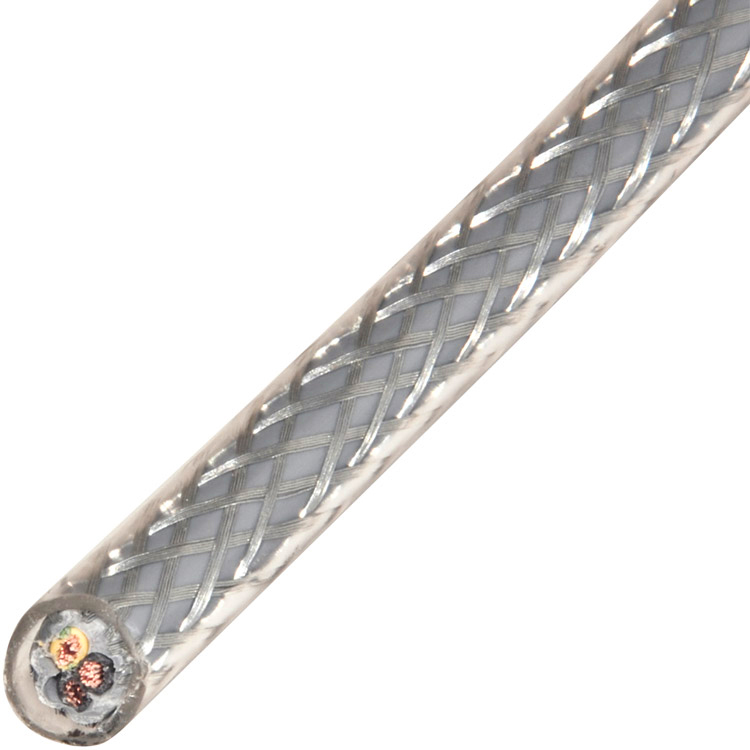

1.5mm 3 Core SY Control Flexible Cable

Application: Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for fixed installations or for flexible use in conditions of light mechanical stress. Can be used outdoors when protected, and in dry or moist conditions indoors.
The braided screen offers the best possible protection against mechanical damage and offers a level of Electro-magnetic shielding. The galvanised coating helps protect against corrosion.

Standards: Generally to BS6500, VDE0250

Conductor: Class 5 flexible annealed plain copper conductors to BS EN 60228:2005 (previously BS6360), VDE0295, IEC 60228

Insulation: PVC (Polyvinyl Chloride) Type TI 2 complying with BS EN 50363-3:2005

Bedding: PVC (Polyvinyl Chloride) TM2 as specified in BS EN 50363-4-1:2005

Braiding: GSWB (Galvanised Steel Wire Braid)
Minimum coverage of braiding shall be 50%

Sheath: PVC (Polyvinyl Chloride) conforming to TM 2 as specified in BS EN 50363-4-1:2005

Sheath Colour: Transparent

Voltage Rating: 300/500V

Operating Temperature: -15°C to +70°C

Minimum Bending Radius: 10 x overall diameter

Short Circuit Temperature: +160

Core Identification: Black with White numbers. (3 cores and above to include Green/Yellow). Coloured cores available.
