50W 24V DC Constant Voltage Dimmable LED Driver

Estimated delivery on this item from: £3.96

Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.

Please Note:-

Christmas & New year - There will be no dispatches from 12 noon on Tuesday 24th December 2024 but orders can still be placed and will be dispatched when we return after the Christmas break on Wednesday 2nd January 2025.

Additional Information:

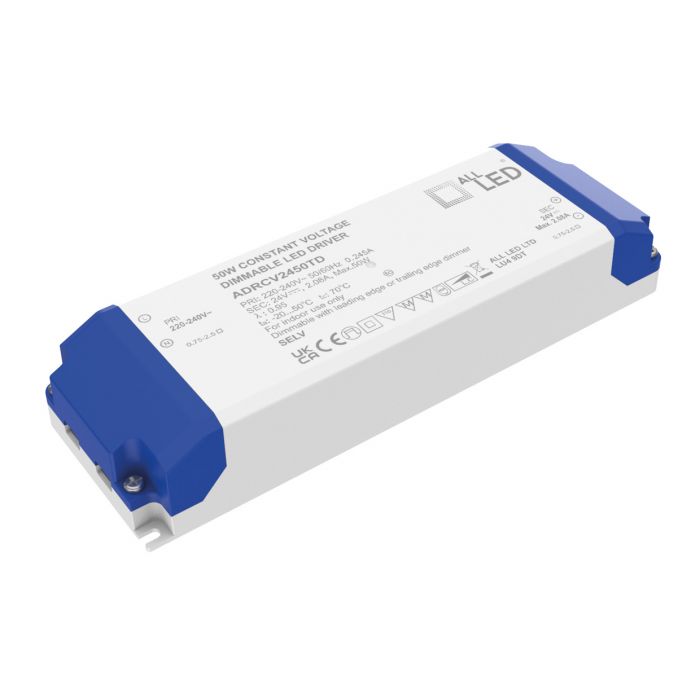

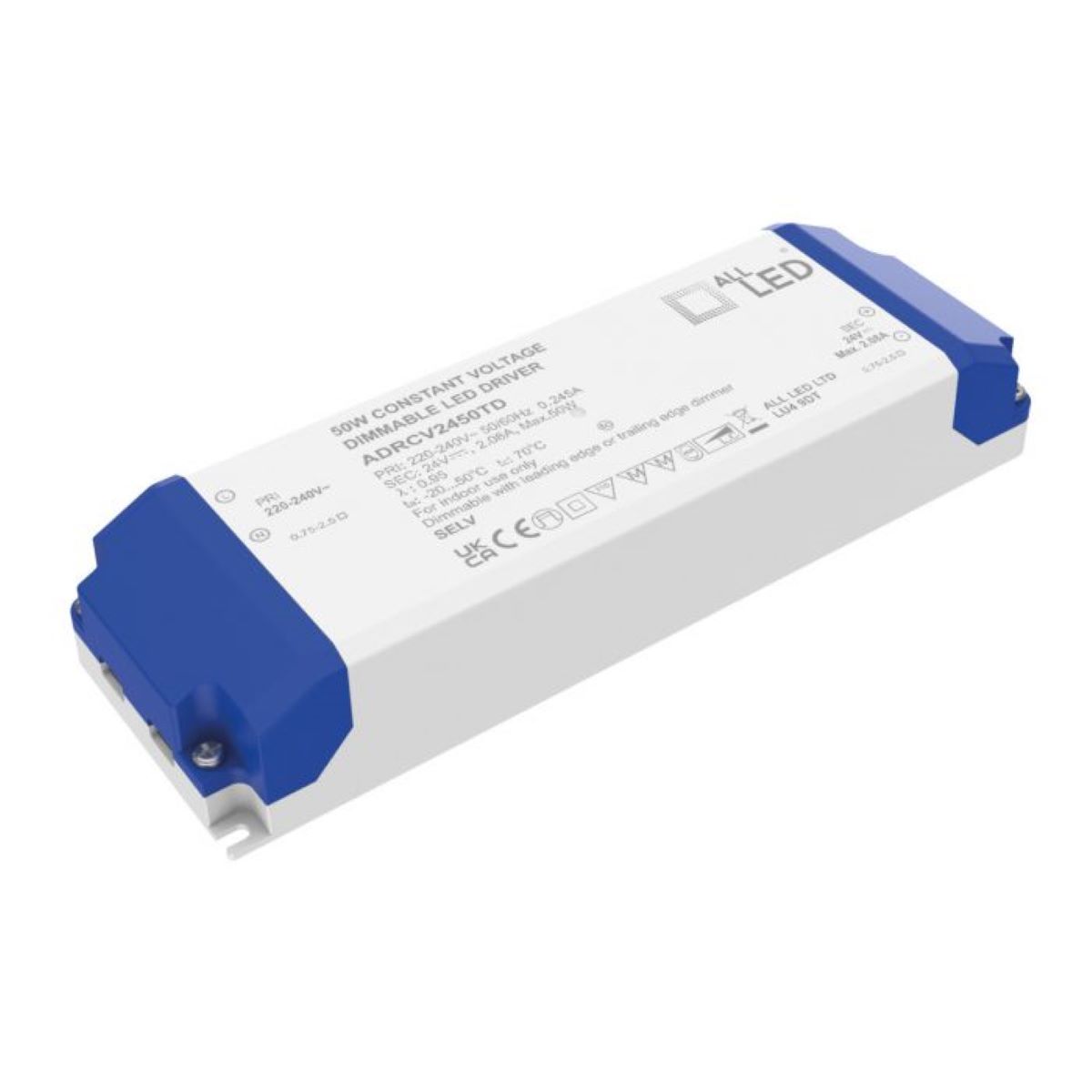

Drive24TD 24V DC Constant Voltage Triac Dimmable LED Driver 50W
The Drive24TD 24V constant voltage driver is a reliable and versatile choice for powering 24V LED lighting systems.
It is compatible with both trailing and leading-edge dimmers, allowing for seamless integration with various dimming systems.
The driver is built with a tough polycarbonate body, ensuring durability and long-term performance.
Its loop-in loop-out design simplifies installation, while the large terminals enable easy and secure wiring connections.
The driver offers comprehensive protection features, including overload protection, no-load protection, short circuit protection, thermal protection, and overcurrent protection.
These safety measures ensure the longevity and safe operation of the driver and connected LED lights.
The Drive24TD driver is a reliable option for constant voltage LED lighting applications.

24V Constant Voltage
Available in 25W, 50W and 100W
Dimmable - Compatible with Trailing & LeadingEdge Dimmers
Large Terminals
Overload, No Load, Short Circuit, Thermal &Overcurrent Protection
IP20
Operating Voltage 220-240V AC

Operating Current (A max) 0.245

Max Output Power 2.5 - 50W

Output Current (Max) 2.08A

Output Voltage 24V DC

Power Factor 0.95

Efficiency % 89%

No Load Power (W) <0.5W

Class II

Body Material Polycarbonate

Frame Colour White

Switching Cycles 100,000

Ingress Protection IP20

Ambient Operating Temperature (°C) -20°C ~ +50°C

Input Frequency (Hz) 50-60Hz

Guarantee 5 Years

Dimmable Yes

Dimming Mode (Trailing or Leading) Trailing & Leading

Output Type Constant Voltage

Lifetime 50,000 Hrs

Start Up Time <0.5s


Inrush Current A pk (TH & ms) 20 (th=100µs)
