7.0 Ah 12V Sealed Lead Acid Rechargable Battery

Estimated delivery on this item from: £9.96

Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.

Additional Information:
7.0 Ah 12V Sealed Lead Acid Rechargable Battery

Maintenance Free Rechargable Battery
Commonly used in Fire & Intruder Alarms & many other applications


Nominal voltage 12 V
20-hr rate Capacity to 1.75VPC at 20°C 7 Ah
10-hr rate Capacity to 1.75VPC at 20°C 6.4 Ah
Length 151 (±1) mm
Width 65 (±1) mm
Height 94.5 (±1) mm
(height over terminals) 100 (±2) mm
Mass (typical) 2.45 kg
FASTON (Quickfit / release) 4.75 mm
Storage
Charge
Discharge LAYOUT
Capacity loss per month at 20°C (approx) 3 %
Standard Option
Flame retardant option (FR)
13.65 (±1%) V
2.275 (±1%) V/cell
Float Charge voltage temperature correction factor
(for variations from the standard 20°C) -3 mV/cell/°C
14.5 (±3%) V
2.42 (±3%) V/cell
Cyclic Charge voltage temperature correction factor
(for variations from the standard 20°C) -4 mV/cell/°C
Float charge current limit No limit A
Cyclic (or Boost) charge current limit 1.75 A
1 minute 48 A
Internal resistance N/A mO 3RD PARTY CERTIFICATIONS
Short-Circuit current N/A A ISO 9001 - Quality Management Systems
ISO 14001 - Environmental Management Systems
Measured at 1 kHz 23 mO EN 18001 - OHSAS Management Systems
UNDERWRITERS LABORATORIES Inc.
Refer to the technical manual YUCEL
STANDARDS
EUROBAT Classification: Standard Commercial 3 to 5 years IEC61056
Yuasa design life @ 20°C up to 5 years
ALL DATA IS SUBJECT TO CHANGE WITHOUT NOTICE
Issue No.: V.1 / Issue Date: July 2010

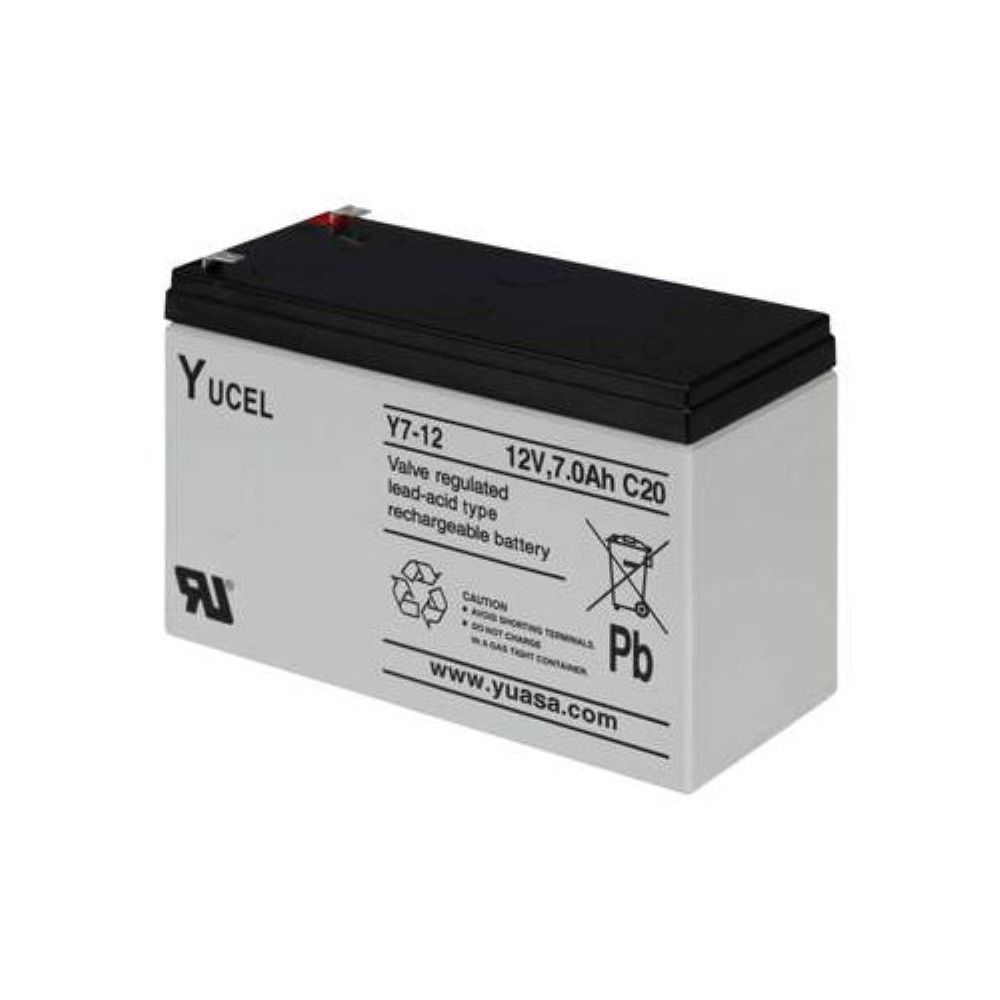

Yucel-Series - Valve Regulated Lead Acid Battery
-20°C to +60°C
