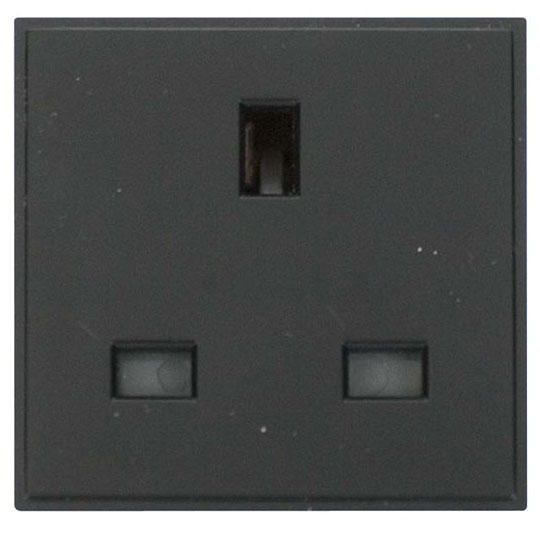

Click Media 13 Amp Socket Outlet Module Black

Click Media 13 Amp Socket Outlet Module Black
Click Media 13 Amp Socket Outlet Module Black




Click Media 13 Amp Socket Outlet Module Black

Price:
£2.88 Each
(£2.40 Ex VAT at 20%)

Estimated delivery on this item from: £3.96
Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.


MPN: MM010BK
Product Ref: MM010BK

Additional Information:
Click Media 13 Amp Socket Outlet Module Black

General Information
Dimensions 50mm (W) x 50mm (H) x 25.6mm (D)
Module Finish Black
Materials Cover & Housing: Polycarbonate Terminals: Brass
Terminal Screws: Steel & Yellow Passivated Internal Busbars: Formed Pressed Brass
Maximum Voltage 250V~ 50Hz
Load Rating 13A
Terminal Size 5mmø
Terminal Torque 2.0Nm
Terminal Capacity 3 x 2.5mm2
or 2 x 4mm2
Ingress Protection IP20
Back Box Depth Dependent on Plate Used
Termination Type Screw
Operational Temperature -5°C to +40°C

Standards BS 1363-2: 2016 +A1: 2018
