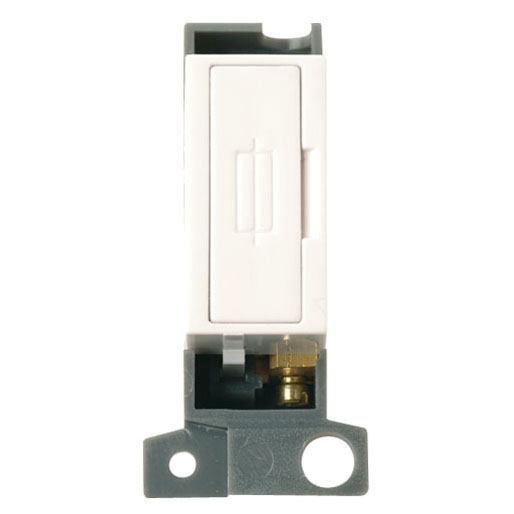

Click Media Grid 13 Amp Fused Connection Unit Module

Estimated delivery on this item from: £3.96

Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.

Additional Information:
Click Media Grid 13 Amp Fused Connection Unit Module

General Information
Dimensions 25mm (W) x 57mm (H) x 25.2mm (D)
Aperture Dimensions 16mm (W) x 31.5mm (H)
Finish Polar White
Frame Polar White
Materials Cover & Fuse Drawer: Nylon
Rear Housing: Nylon
Terminals: Brass
Terminal Screws: Steel & Yellow Passivated
Internal Busbars: Formed Pressed Brass
Maximum Voltage 250V 50Hz
Load Rating 13A
Terminal Size 3.5mmø
Termination Type Screw
Terminal Torque 0.5Nm
Terminal Capacity 4 x 1.5mm2
or 2 x 2.5mm2
Product Markings Fused Symbol
Fuse Fitted 13A (BS 1362)
Back Box Depth Dependent On Plate Used
Operational Temperature -5°C to +40°C

Standards BS 5733: 2010
