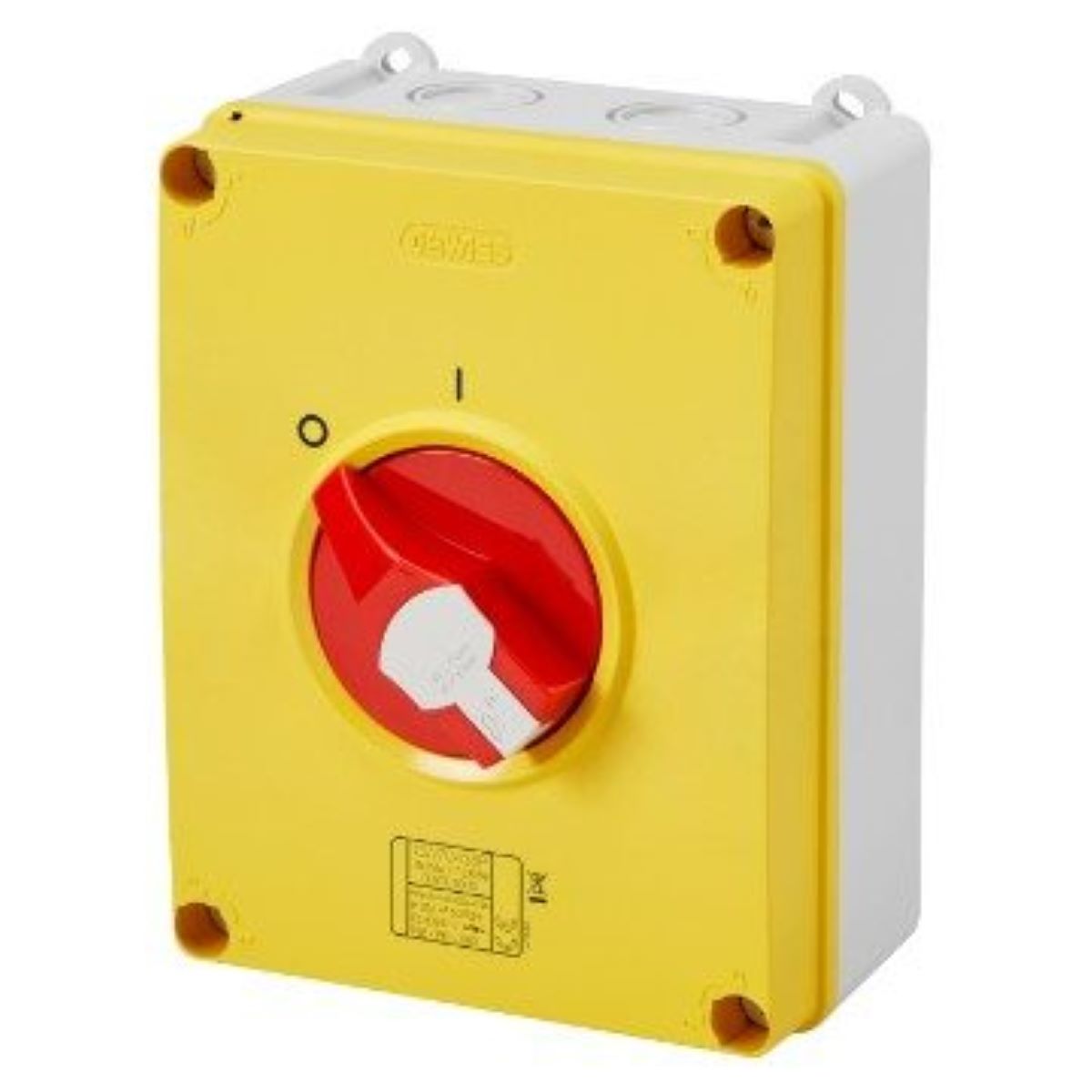

Gewiss Rotary Isolator Switch 63A 4P 415v

Estimated delivery on this item from: £3.96

Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.

Additional Information:
Gewiss Rotary Isolator Switch 63A 4P 415v
IP66

70 RT HP is a range of 16A to 160A switch disconnectors in isolating material and metal.
Available in control and emergency versions, the range is completed by board versions for front-panel or DIN rail assembly, in 16 to 63A options, all of which can be equipped with auxiliary contacts.
These devices have been designed for deliver the ultimate in reliability, functionality and performance.
They offer a technologically advanced solution that simplifies installation, reduces wiring times and ensures maximum safety and robustness, even in the most demanding conditions, thanks to the use of high-performance materials.

TECHNICAL SPECIFICATION
• Version: Box
• Material: Insulation
• Type: For emergency
• Rated current (A): 63
• No. of poles: 4P
• Circuit breaker: Rotary isolator
• IP degree: IP66/IP67/IP69
• Mechanical resistance: IK08
• Ambient temperature: -25 +60 °C
• Lid screws (no. and type): 4 insul. a 1/4 turn
• Holes entry: 2 x M25/32 + 2 x M25/32
• Lockable: YES (max. 3 locks in OFF)
• Type of accessory: Max. 2 auxiliary contacts
• Current in AC22 (415V): 63
• Current in AC23 (415V): 63
• Cable section: Max 25 mm²
• Outer dim. LxHxD (mm): 156x200x95
