Relco Inline Foot Slider Dimmer LED or Halogen

Estimated delivery on this item from: £3.96

Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.

Please Note:-

Christmas & New year - There will be no dispatches from 12 noon on Tuesday 24th December 2024 but orders can still be placed and will be dispatched when we return after the Christmas break on Wednesday 2nd January 2025.

Additional Information:

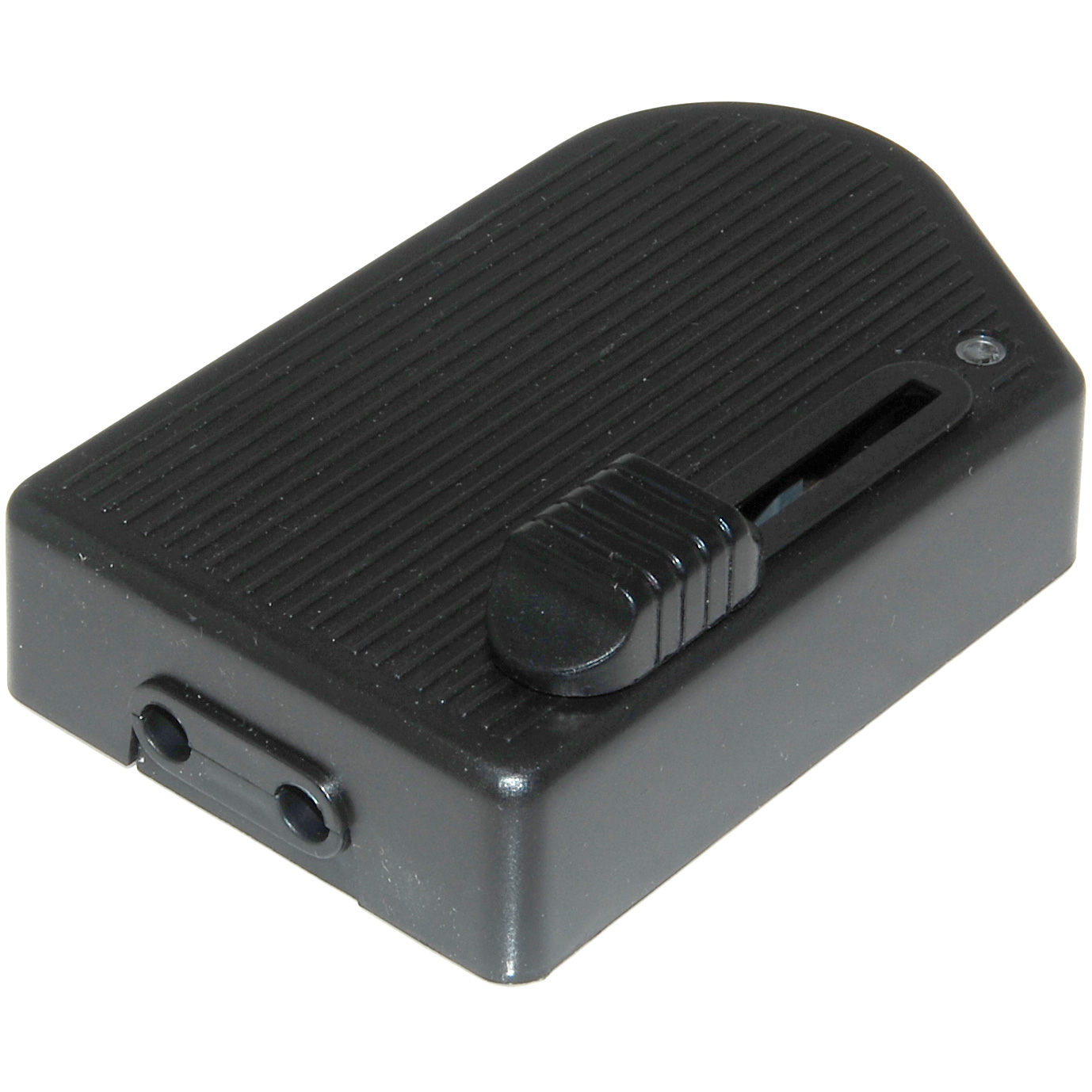

Relco Black LED or Halogen Inline Foot Slider Dimmer
Ideal for Standard Lamps - RL1104/LED

Trailing Edge Technology


Electronic table or floor class I and II dimmer
General characteristics
- Electronic dimmer for halogen lamps and dimmable LED lamps 100-240V;
- Resistance index to surface current (PTI175);
- Incandescent wire test level (level 1 switch);
- Passing installation on wire;
- Fuse incorporated;
- Light for easy finding in the dark
- Power supply 220-240V~;

Power:
HALO: 40÷250W - LED: 4÷100W
- Power supply 100-127V~;

- Environmental operating temperature 0-35 °C;
- The dimmer has intensity regulation that only guarantees an electronic type disconnection (?)
Instructions
- Operation
It is regulated directly by the cursor.
RT81 LED is equipped with jumpers for setting the minimum, on some LED lamps in fact it is
sometimes necessary to raise the minimum adjustment level to avoid flicker.
Jumper in position "A" = minimum of 20%
Jumper in position "B" = minimum of 30%
Notes
Do not use lamps with an incorporated regulator. The regulator does not separate galvanically.
If it should not work, have the fuse checked by a qualified electrician and, if necessary, have it
replaced with one of the same kind T 1,6 AH 250V ~.

Dimensions
Height 39mm
Length 115mm
Width 71mm

This is dimmer only and has no on/off switch and must not be used in place of an on/off switch.
The dimmer only provides resistance to the electrical current and is not intended to dim the bulb to no light.

Not suitable for G4 capsule lamps
