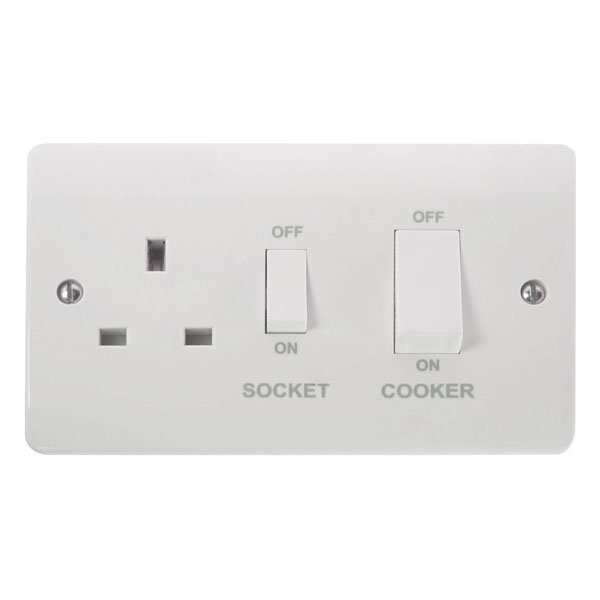

Scolmore Click Mode 45A Cooker Control Unit & Socket

Estimated delivery on this item from: £3.96

Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.

Additional Information:
45A 2 Gang Double Pole Switch With 13A Double Pole Switched Socket Outlet & White Rockers

General Information
Plate Dimensions 146mm (W) x 86mm (H) x 9.5mm (D)
Plate Design & Finish Rounded Profile Polar White
Materials Front Plate: Urea Rear Housing: Urea
Terminals: Brass Terminal Screws: Steel & Yellow Passivated
Contacts: Silver “on-lay” Copper / Brass Internal Busbars: Formed Pressed Brass
Earth Strap: Mild Steel
Maximum Voltage 250V~ 50Hz
Load Rating 45A
Plate Fixing Centres 120.6mm
Terminal Size 6mmø
Terminal Torque 2.5Nm
Terminal Capacity 1 x 16mm2
Double Pole Yes
Twin Earth Terminals Yes
Product Markings On, Off, Socket, Cooker
Ingress Protection IP20
Back Box Depth 35mm Minimum
Termination Type Screw
Operational Temperature -5°C to +40°C
Standards BS 4177:1992
