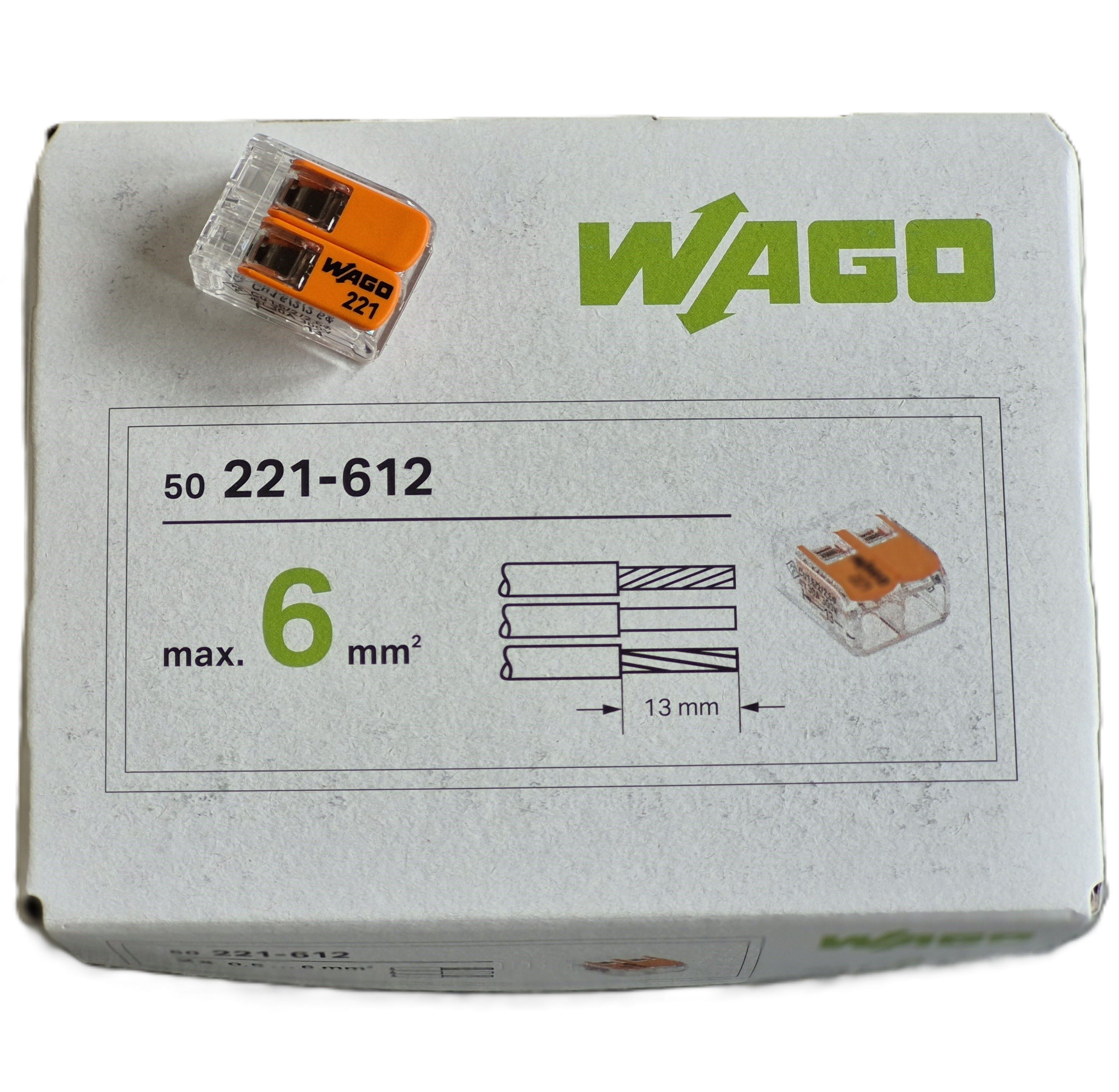

Wago 2 Port Lever Clamp Connector 41A

Estimated delivery on this item from: £3.96

Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.

Please Note:-

Christmas & New year - There will be no dispatches from 12 noon on Tuesday 24th December 2024 but orders can still be placed and will be dispatched when we return after the Christmas break on Wednesday 2nd January 2025.

Additional Information:
Wago 2 Port Lever Clamp Connector 41A

Ease of use – pull the lever up, insert a conductor and push the lever back down
Available as 2-, 3- and 5-wire connectors
Easily terminate conductors from 0.5 to 6 mm²
Connection of all conductor types
Time savings for installers and device manufacturers
Quickly install devices with higher power consumption
Safely install long cable runs with larger conductor cross sections
Mounting carrier for installation conforms to standards
Custom carriers are possible

Connection technology CAGE CLAMP®
Actuation type Lever
Connectable conductor materials Copper
Nominal cross-section 6 mm² / 10 AWG
Solid conductor 0.5 6 mm² / 20 10 AWG
Stranded conductor 0.5 6 mm² / 20 10 AWG
Fine-stranded conductor 0.5 6 mm² / 20 10 AWG
Strip length 12 14 mm / 0.47 0.55 inches
Wiring direction Side-entry wiring
