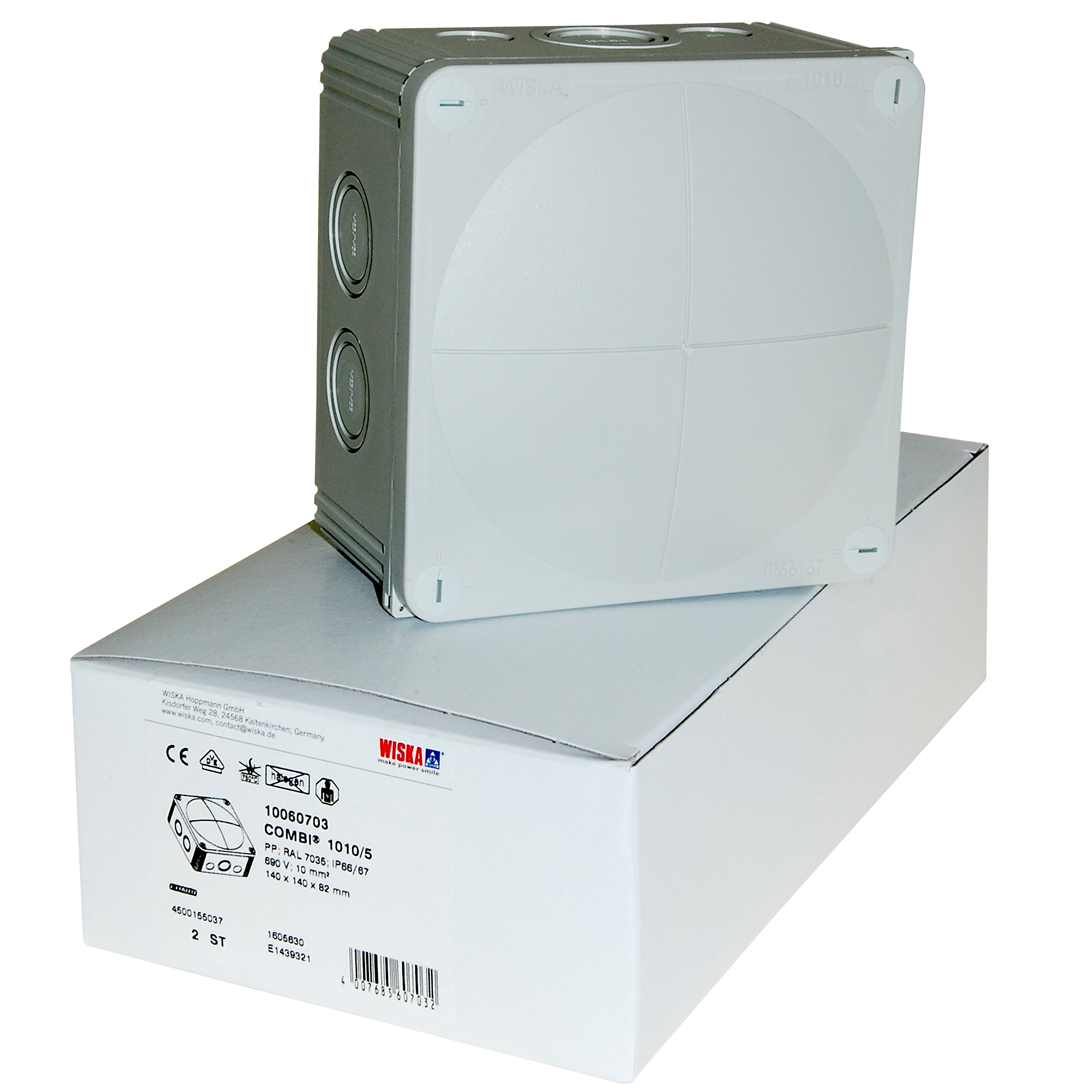

Wiska Combi 1010/5 Grey Weatherproof Junction Box

Estimated delivery on this item from: £3.96

Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.

Please Note:-

Christmas & New year - There will be no dispatches from 12 noon on Tuesday 24th December 2024 but orders can still be placed and will be dispatched when we return after the Christmas break on Wednesday 2nd January 2025.

Additional Information:
Wiska Combi 1010/5 Grey Weatherproof Junction Box
140mm x 140mm x 82mm

Material Polypropylene
Material sealing gasket TPE
Temp. range min -30 °C
Temp. range max 100 °C
Temperatures during install. -5 °C - 60 °C
Protection class IP66 / IP67
Glow wire test 750 °C
Voltage 690 V
Rated current / A (Terminal) 57 A
Terminals/poles 10 mm²
Terminals/poles 5 x 10mm²
Fixing 4 internal openings
Ø cable diameter min 6 mm
Ø cable diameter max 21 mm
External dimensions LxWxH 140 x 140 x 82mm
Using for cable gland Using for cable gland
Product Color RAL 7035
WISKA-Order no. 10060703
Type COMBI® 1010/5
Packing unit 2
ETIM-Classification EC002600
Remarks:

IP66: using the QUIXX self sealing membrane screw
IP67: using the knockout entry together with
ESKV cable gland

Mounting: 4 internal openings outside of the sealing area
