Wiska Combi 607/5/S Black Weatherproof Junction Box

Estimated delivery on this item from: £3.96

Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.

Please Note:-

Christmas & New year - There will be no dispatches from 12 noon on Tuesday 24th December 2024 but orders can still be placed and will be dispatched when we return after the Christmas break on Wednesday 2nd January 2025.

Additional Information:

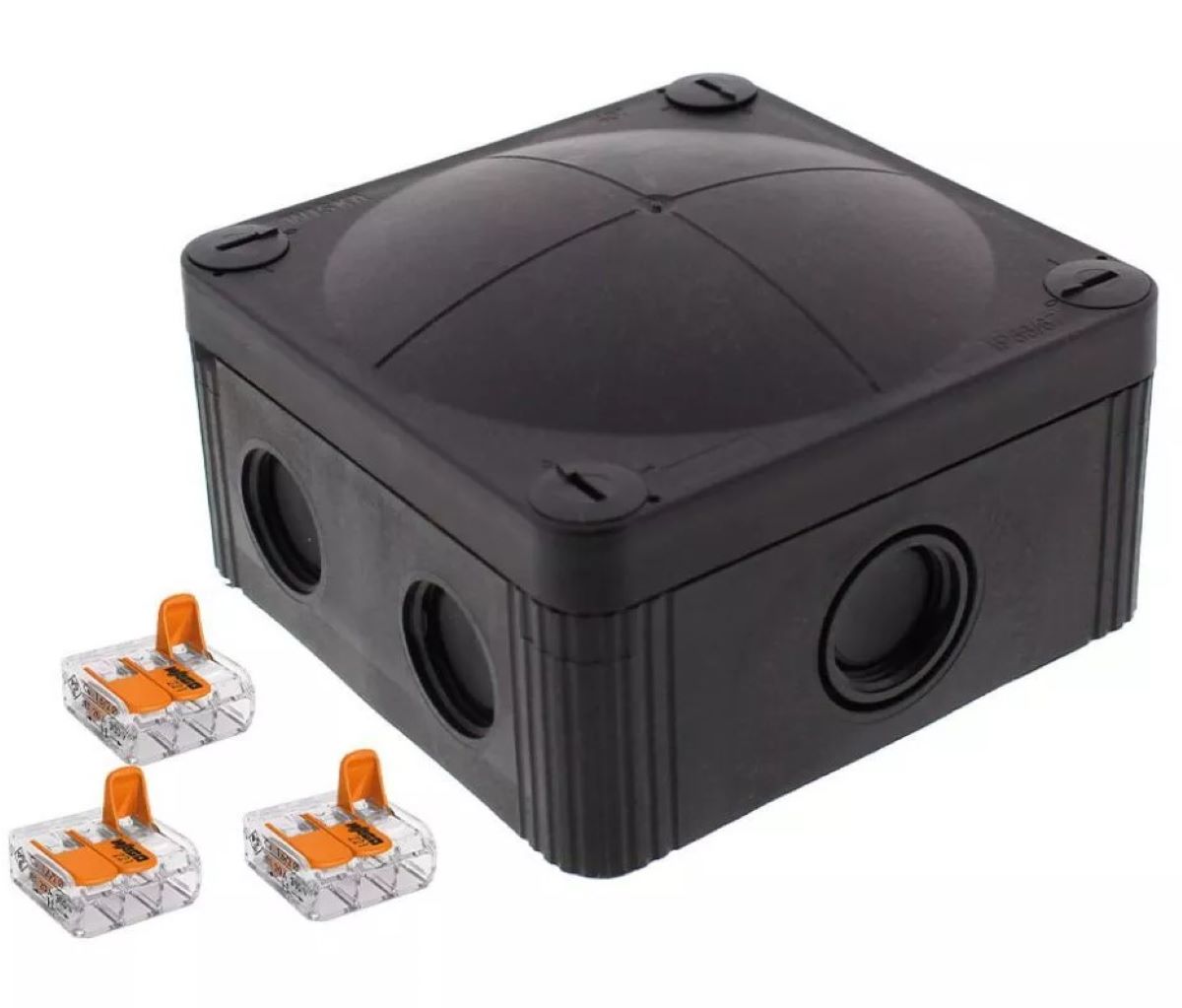

Wiska Combi 607/5 Black Weatherproof Junction Box
110 x 110 x 66mm
Including 3 x Wago 221-613 in each box

Material Polypropylene
Material sealing gasket TPE
Temp. range min -30 °C
Temp. range max 100 °C
Temperatures during install. -5 °C - 60 °C
Protection class IP66 / IP67
Glow wire test 750 °C
Voltage 690 V
Rated current / A (Terminal) 41 A
Terminals/poles 6 mm²
Terminals/poles 5 x 6mm²
Fixing 4 internal openings
Ø cable diameter min 5,2 mm
Ø cable diameter max 17 mm
External dimensions LxWxH 110 x 110 x 66 mm
Using for cable gland
Product Color RAL 9005
Type COMBI® 607/5 2x KRM25/20
Packing unit 3
ETIM-Classification EC002600
IP66: using the membrane entry
Ø cable: 5,2 - 17 mm
IP67: using the threaded entry together with ESKV cable gland
Ø cable: 9,0 - 17 mm
Mounting:
- 4 internal openings outside of the sealing area
Equipment:
- 7 elastic, self-sealing puncture-membranes for cable entry on the side and 3 on the bottom
- 7 integrated M25 thread for mounting without lock nut
- 4 captive cover screws
- terminal block 5-poles, 6mm²
- 2 reduction adaptors KRM 25/20
