Wiska Sprint M40 IP68 Tails Gland Kit

Estimated delivery on this item from: £3.96

Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.

Additional Information:
Wiska Sprint M40 IP68 Tails Gland Kit
Material cable gland Polyamide
Material sealing gasket EPDM
Temp. range min -40 °C
Temp. range max 100 °C
Protection class IP66, IP68 (5 bar 30 min)
Product Color RAL 7035
Thread type M
Ø Connection thread D 40
Lead 1,5
Length screw-in thread L 12 mm
Key width SW 46 mm
Total length TL 52 mm - 65 mm
Glow wire test 750 °C
Type of cable anchorage A
Install. torques fitting 20 N/m
Install. torques cap nut 20 N/m
Impact category 4
Order no. RAL 7035 10106245
Type TKE/P 40/RD
Packing unit 1
ETIM-Classification EC000441
Description:

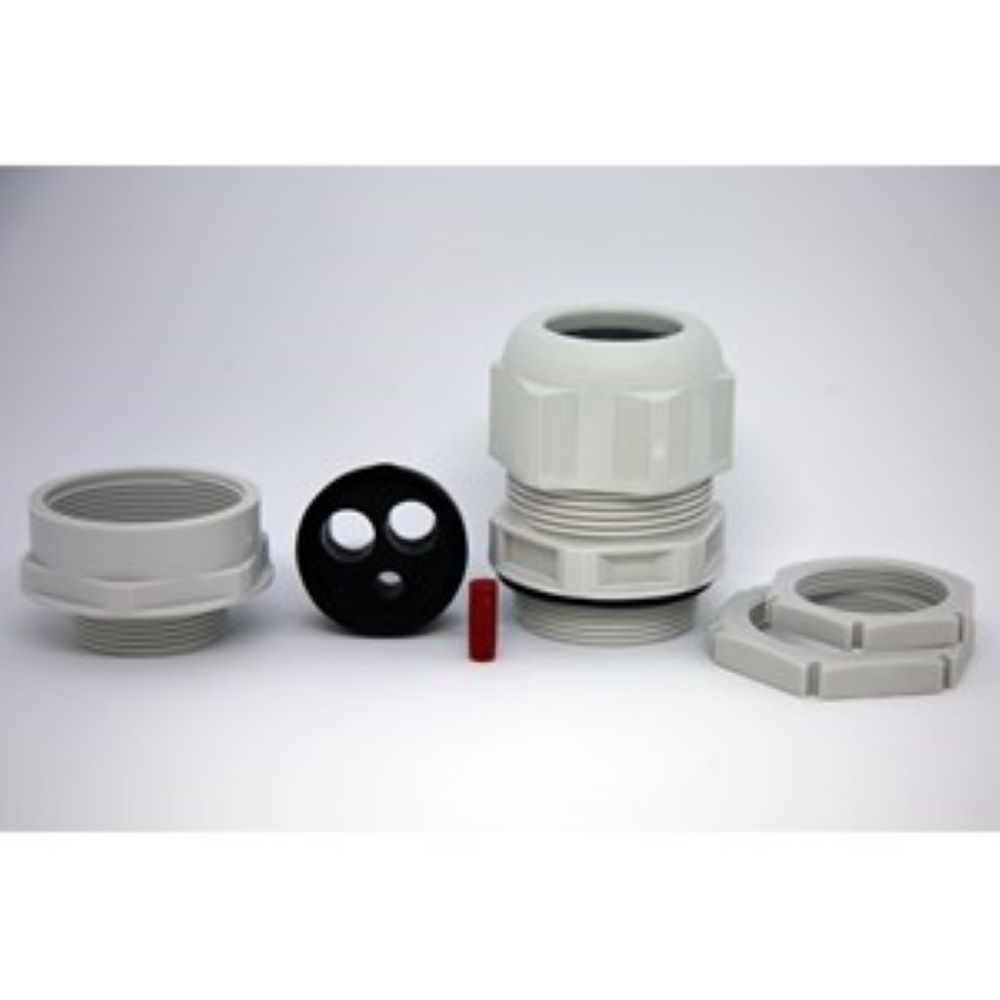

UNIVERSAL OPTION Suitable for 32 or 40 mm. IP68 Plastic cable gland. ESKV 40/ MFD 2 x 11mm Tails and 1 x 6mm Earth, 1 KEM Adaptor 40 - 32mm. Kit contains multiple sealing insert, locknut, blanking insert and KEM reduce.
